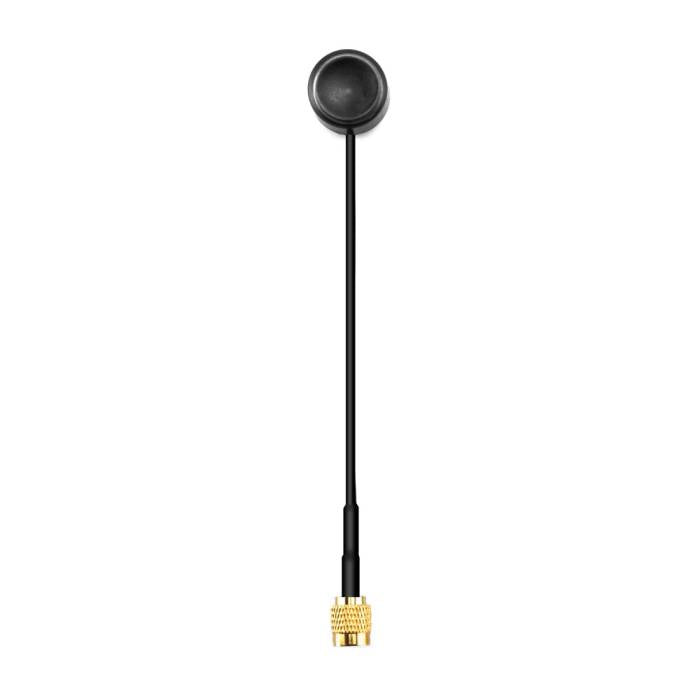

TrueRC CORE 5.8GHz Side Feed Antenna – SMA 100mm RHCP/LHCP

Are you looking to buy a TrueRC CORE 5.8GHz Side Feed SMA 100mm Antenna in Australia?

The exclusive TrueRC CORE 5.8Ghz Side Feed Antenna is a distillation of all those years working with drone enthusiasts and professionals alike. This is a special version with an SMA connector and side exit cable. This omnidirectional antenna starts with a refined RF design that provides excellent consistency within units and various cable configurations. TrueRC added a durable outer shell that protects the antenna from inevitable crashes.

Choose a Polarisation:

• RHCP
• LHCP

Features

• Durable polycarbonate, Injection Molded, ultra-sonically welded housing
• Smooth radiation pattern with even gain in all directions
• Exclusive knurled True-SMA for easy tightening
• Flexible coax cable option that deflects impacts
• Clear indication of polarization direction
• Excellent axial ratio and efficiency
• Side Feed Cable

Specifications

• Dimensions (head): 16.9mm dia. x 13.1mm height.
• Cross-Polar Rejection: -10 to -20dB
• Polarization: RHCP or LHCP
• Cable: TrueRC RG178 coax
• Bandwidth: 5.5GHz-6.1GHz
• Radiation Efficiency: 98%
• Connector: SMA
• Length: 100mm
• SWR: <=1.2:1
• Gain: 1.9dBic
• Color: Black
• Weight: 5g

Includes

• 1x TrueRC CORE 5.8GHz Side Feed Antenna – SMA 100mm (Choose Polarization)
