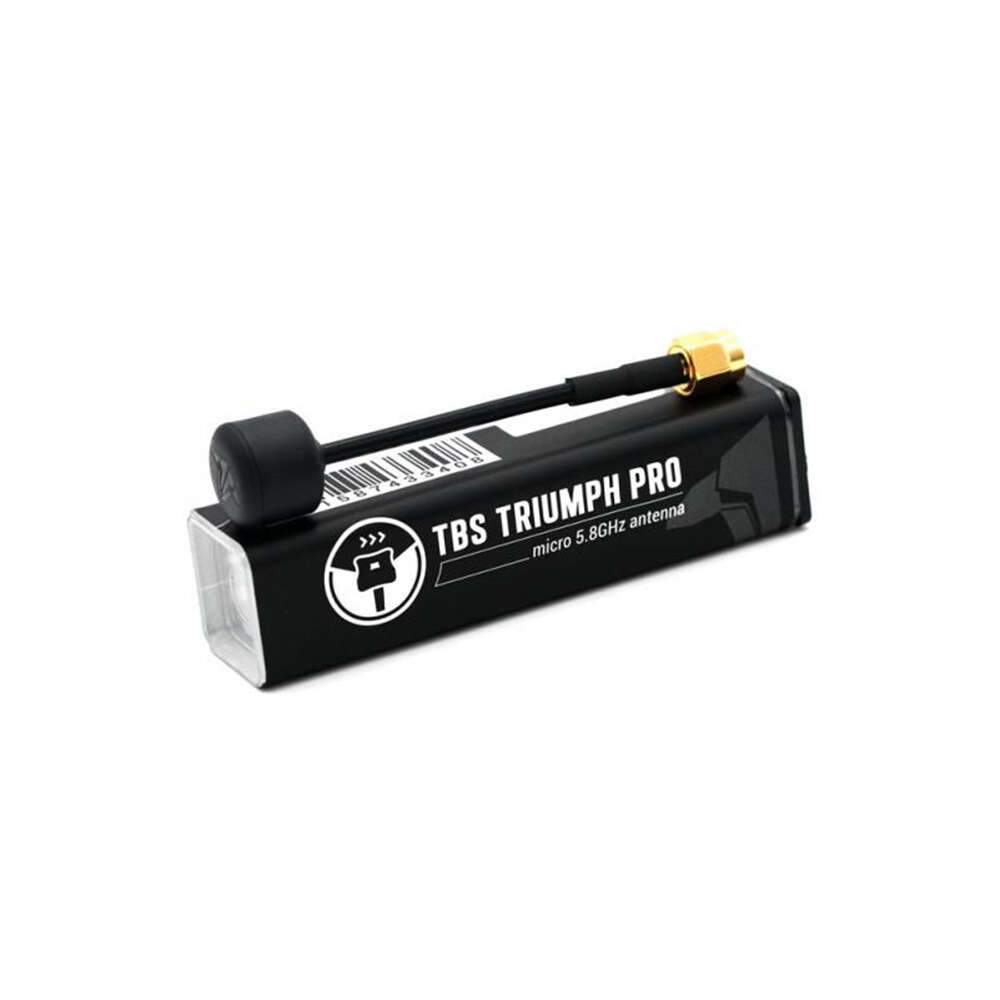

TBS Triumph Pro RHCP 5.8ghz Antenna

The next revolution in circular polarisation technology, the Triumph Pro gives a professional performance in a compact, durable package.  Don’t let the small size fool you, the Triumph Pro doesn’t compromise on performance.  Designed by IBCrazy and manufactured by TBS, the multi-phase elements use patent-pending technology to create a precise circular pattern that is not distorted by proximity to your aircraft or other objects.

The microstrip antenna design together with a rigid and ultrasonic-welded enclosure allows mounting in exposed places, where signal propagates better. The antenna comes in 4 connector flavors: u.FL, MMCX, MMCX 90º and SMA.

Features

• Manufactured and tested to highest standards
• Best in class range and signal quality
• Incredibly small and low weight
• Ultrasonic welded and foam infused cover for ultimate crash-protection
• Double-jacket semi-rigid cable for heavy impact resistance

Specifications

• SMA
  • Frequency range: 5500-6000MHz
  • Polarisation: RHCP
  • Gain: 1.6dbic
  • Axial Ratio:   0.99
  • Weight: 11.5g
  • Height: 78mm, 3in
  • Connector: SMA
• U.FL
  • Frequency range: 5500-6000MHz
  • Polarisation: RHCP
  • Gain: 1.6dbic
  • Axial Ratio: 0.99
  • Cable: RG405/U
  • Weight: 2-3g
  • Height: 85mm, 3.3 in
  • Connector: u.FL
  • Dimensions (PDF)
• MMCX 90
  • Frequency range: 5500-6000MHz
  • Polarisation: RHCP
  • Gain: 1.6dbic
  • Axial Ratio: 0.99
  • Cable: RG405/U
  • Weight: 2-3g
  • Height: 85mm, 3.3 in
  • Connector: MMCX (90º angle)
  • Dimensions (PDF)
• MMCX
  • Frequency range: 5500-6000MHz
  • Polarisation: RHCP
  • Gain: 1.6dbic
  • Axial Ratio: 0.99
  • Cable: RG405/U
  • Weight: 2-3g
  • Height: 85mm, 3.3 in
  • Connector: MMCX
  • Dimensions (PDF)

Includes

• 1x TBS Triumph Pro Antenna
