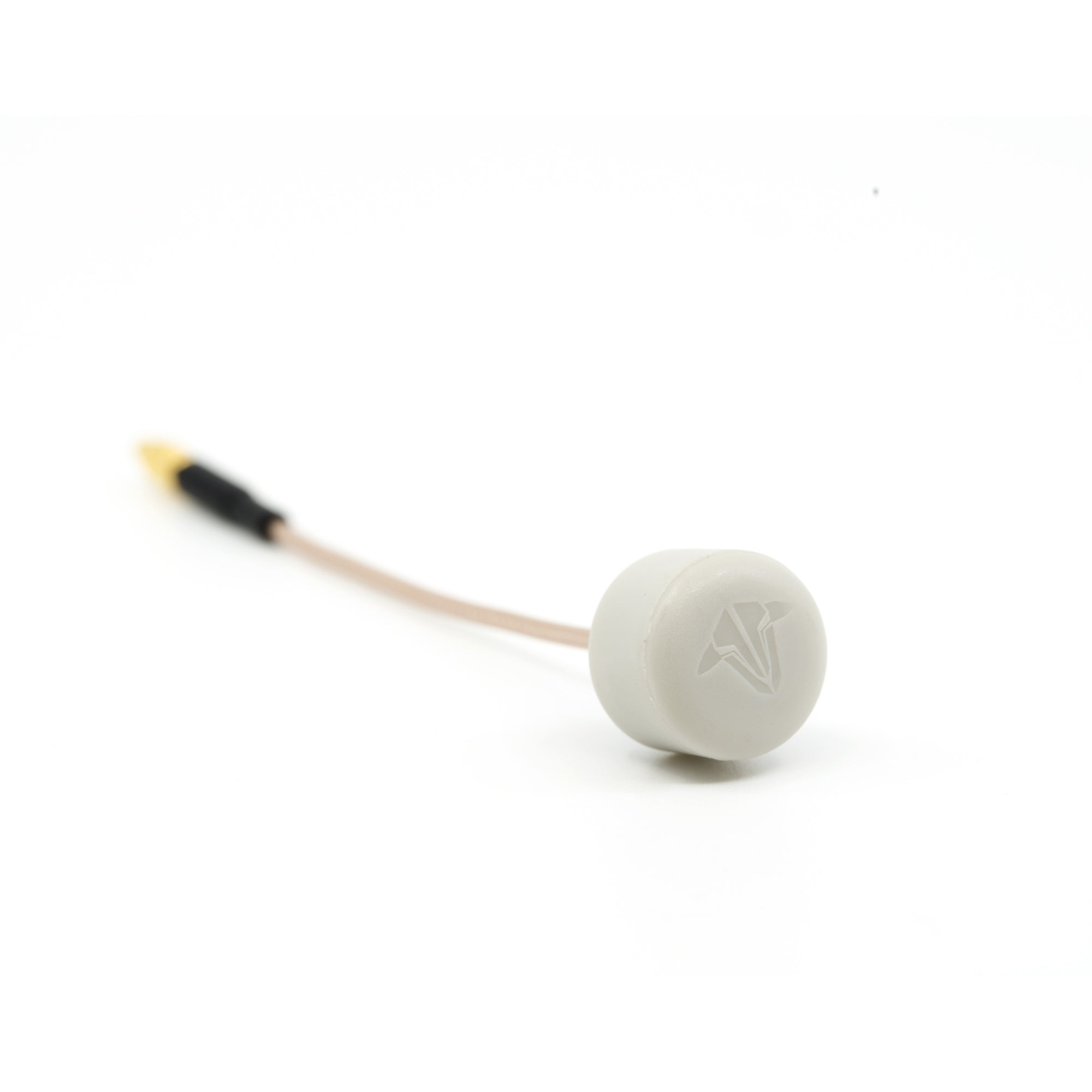

TBS Triumph Pro LHCP 5.8ghz Antenna

Are you looking to buy TBS Triumph Pro in Australia?

The next revolution in circular polarization technology, the Triumph Pro gives a professional performance in a compact, durable package.  Don’t let the small size fool you, the Triumph Pro doesn’t compromise on performance.  Designed by IBCrazy and manufactured by TBS, the multi-phase elements use patent-pending technology to create a precise circular pattern that is not distorted by proximity to your aircraft or other objects.

The microstrip antenna design together with a rigid and ultrasonic-welded enclosure allows mounting in exposed places, where signal propagates better. The antenna comes in 4 connector flavors: u.FL, MMCX, MMCX 90º and SMA.

FEATURES

• Manufactured and tested to highest standards
• Best in class range and signal quality
• Incredibly small and low weight
• Ultrasonic welded and foam infused cover for ultimate crash-protection
• Double-jacket semi-rigid cable for heavy impact resistance

SMA TECHNICAL SPECIFICATIONS

• Frequency range: 5500-6000MHz
• Polarization: RHCP
• Gain: 1.6dbic
• Axial Ratio:   0.99
• Weight: 11.5g
• Height: 78mm, 3in
• Connector: SMA

U.FL TECHNICAL SPECIFICATIONS:

• Frequency range: 5500-6000MHz
• Polarization: RHCP
• Gain: 1.6dbic
• Axial Ratio: 0.99
• Cable: RG405/U
• Weight: 2-3g
• Height: 85mm, 3.3 in
• Connector: u.FL
• Dimensions (PDF)

MMCX 90 TECHNICAL SPECIFICATIONS

• Frequency range: 5500-6000MHz
• Polarization: RHCP
• Gain: 1.6dbic
• Axial Ratio: 0.99
• Cable: RG405/U
• Weight: 2-3g
• Height: 85mm, 3.3 in
• Connector: MMCX (90º angle)
• Dimensions (PDF)

MMCX TECHNICAL SPECIFICATIONS

• Frequency range: 5500-6000MHz
• Polarization: RHCP
• Gain: 1.6dbic
• Axial Ratio: 0.99
• Cable: RG405/U
• Weight: 2-3g
• Height: 85mm, 3.3 in
• Connector: MMCX
• Dimensions (PDF)

PACKAGE CONTENTS

• 1x TBS Triumph Pro Antenna
