TBS Crossfire Sixty9 V2 (5v input only) (915mhz)

Are you looking to buy TBS Crossfire 69 v2 in Australia?

TBS now has an integrated receive and VTX AIO! This is the CROSSFIRE version. If you are after the Tracer version please view the Tracer Sixty9.

This new version features the following changes over the old one:

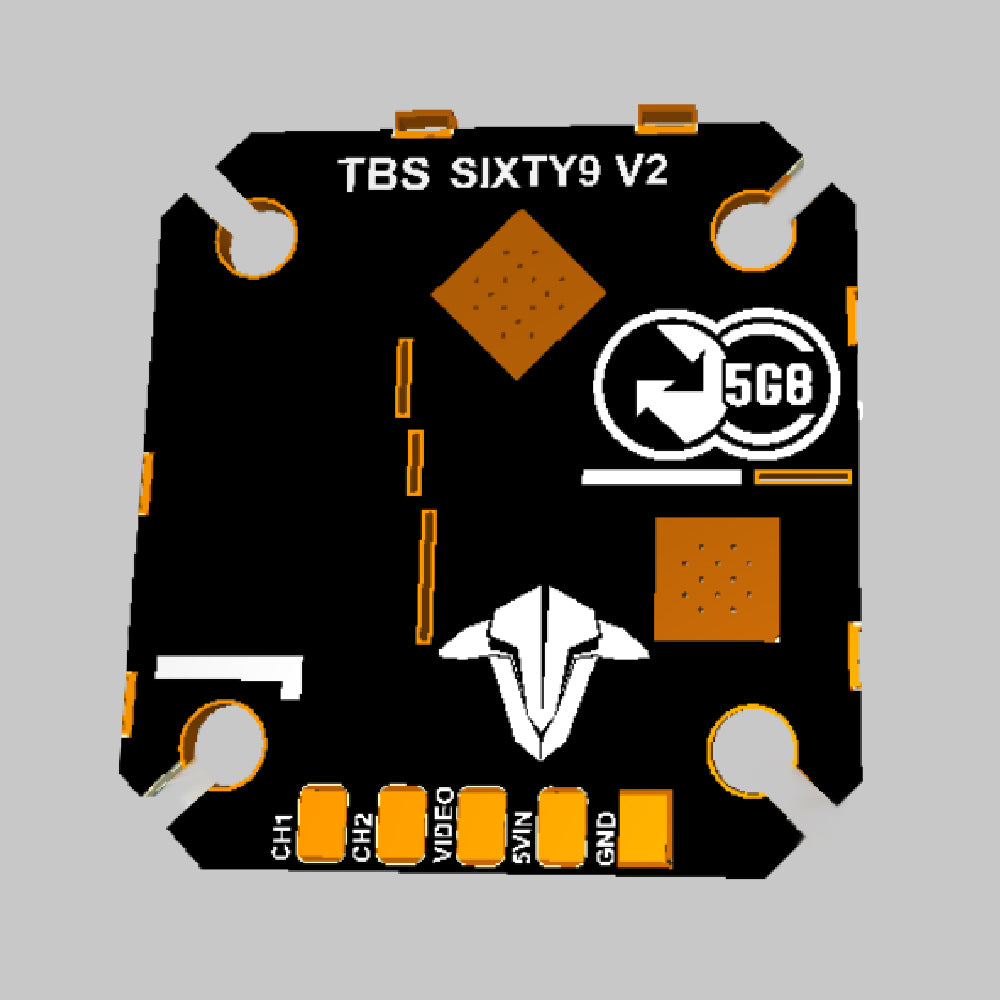

• Flat Bottom: No components on the bottom side of the board for simplified stack- and top-plate mounting
• 5V Input: Instead of direct battery input, the Sixty9 will now run off the 5V power supply of your FC.
• Included Accessories: V2 Sixty9 will come with M3 grommets, IPEX locking connectors for the immortal T, and an SMA adapter for VTX.

What could be better than the best Crossfire receiver and an improved Unify Pro32 video transmitter making sweet love? Exactly! Nothing, nothing at all.

Introducing the TBS Crossfire Sixty9, sporting a race-friendly, long-range capable video transmitter combined with the same on the TBS Crossfire side. Mounting holes are 20×20, but we do include adapters for your 30×30 stacks, and a plastic case for mounting the unit to your frame, without any stacking necessity.

Outputs 2x CRSF + 2x PWM (or 6x PWM) directly to your FC. The main JST-SH connector connects to your flight controller and video camera (or also FC for those that like the FC-OSD).

SPECIFICATIONS

• Weight: 4.1g (board only)
• Antenna ports: 1x video transmitter, 1x R/C receiver
• Size: 24mm x 24mm
• Requires: Firmware V4.62 and above
• CRSF V3 ready

INCLUDES

• 1x TBS Crossfire Sixty9
• 1x TBS Crossfire Immortal-T antenna
• 1x u.FL to SMA mount (for VTx)
• 1x 30×30 heatsink / case
• 1x 20×20 heatsink / case
• 1x optional tin-shield (for added low-noise tolerance)
• 1x JST-SH x 9 connector

DOWNLOADS

• TBS Crossfire – RED Declaration of Conformity
• TBS Crossfire Manual
