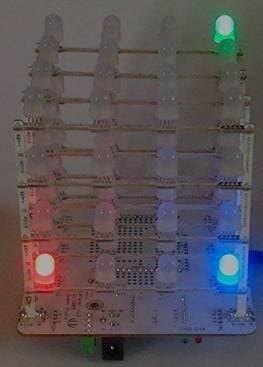

Rainbow Cube Kit RGB 4x4x4

DESCRIPTION

Create stunning visualisations with the Rainbow Cube kit RGB 4x4x4. It comes with a super slim frame and the PCB design makes the assembly much easier than other LED cubes. Rainbow Cube can be used to create many beautiful visual effects with A Rainbowduino. It’s easy to get started quickly with some example software provided on the product wiki.

Once assembled, you can control all LEDs of the Rainbowcube either by changing the Arduino program itself or by using the easy to use control software.

Please Note:

• Kit contains only LED cube parts, *not* the microcontroller board and LED current drivers. The kit is designed to work directly with the Rainbowduino.
• The Rainbowduino includes already all necessary drivers and connections and can be directly attached at the bottom of the Rainbowcube. Also – no PSU is supplied, but any 9V supply with the correct barrel connector should work.
• This kit requires some basic soldering.

FEATURES

Kit Includes:

• 8mm RGB LED x70
• Cube Panel X1
• Slim Panel PCB X4
• Side A slim PCB X4
• Side B slim PCB X4
• 2.54mm 40pin male header X5
• 2.54mm 40pin female header X2
• 2.54mm 16pin female header X3
• 2.0mm 10pin female header X2
• 8pin female header X5
• 2X3 female header X1
• JST power cable X1
• 3.5mm 4pin green terminal X1
• 3.5mm DC jack X1
• 3mm LED red X1
• 3mm LED green X1
• 1K 1/8w resistor X4
• 10k 1/8w resistor X1
• 15k 1/8w resistor X1
• linear voltage regulator X1
• 10uF_16v_E-CAP X2

RESOURCES

• Assembly instruction
• Rainbowduino
• Product wiki
