Matek H743-Wing V3 ICM42688-P/ICM42605 Flight Controller

Are you wanting to buy the Matek H743-Wing Flight Controller in Australia?

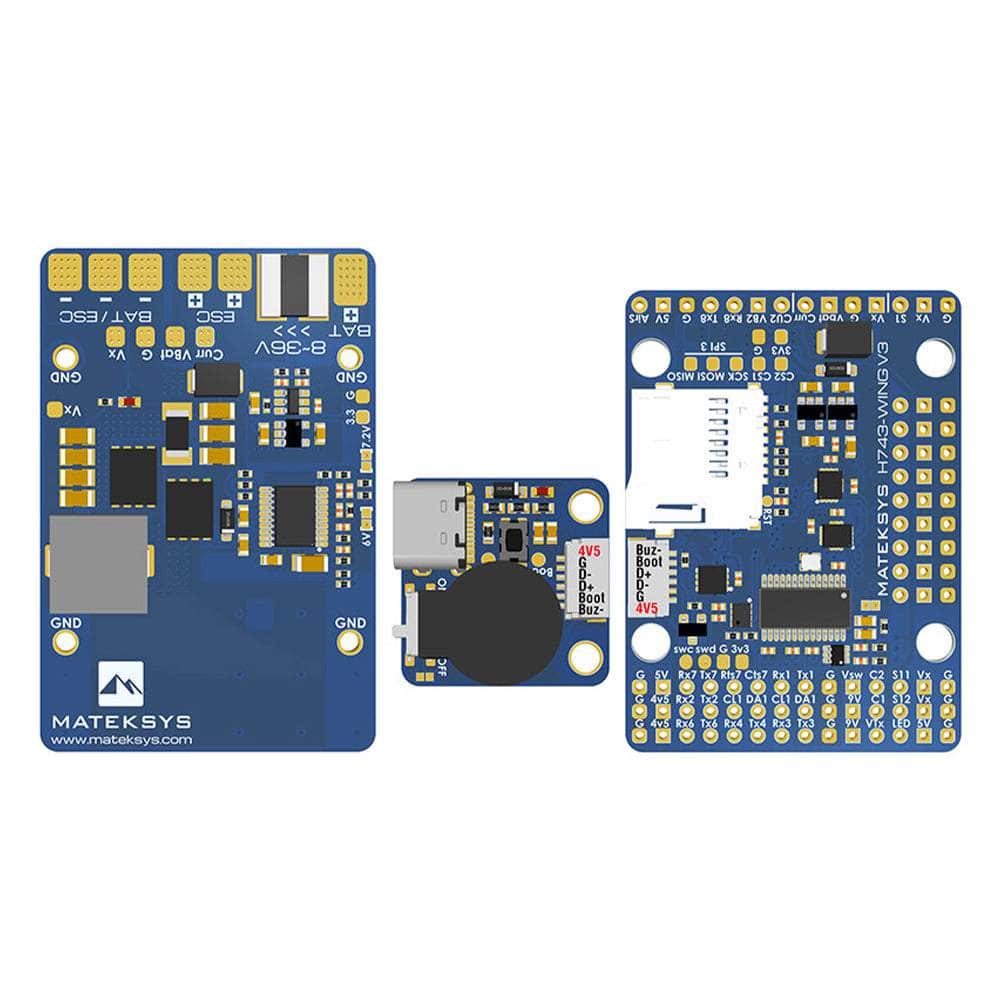

Matek’s H743 WING V3 Flight Controller arrives with new features and improvements over the original. This FC features a STM32H743VIT6 MCU running at 480MHz, dual gyros ICM42688-P(SPI1) & ICM42605(SPI4), a DPS310 (I2C2) barometer, and much more.

This version features an updated Gyro compared to the V2.

Specifications

• Input Voltage: 3-8S LiPo
• MCU: STM32H743VIT6
• Gyro: ICM42688-P / ICM42605
• OSD: Yes
• UARTs: 8 Sets
• ESC Connections: Yes
• Firmware: MATEKH743
• BEC: 3.3V, 5V, 9V, 12V
• Current Sensor: Yes
• Buzzer: Yes
• Barometer: Yes
• Black Box: Micro SD
• Stack Size: Not Stack Mounted
• Dimensions: 54x36x13mm
• Weight: 30g

Includes

• 1x Matek H743 Wing V3 Flight Controller
