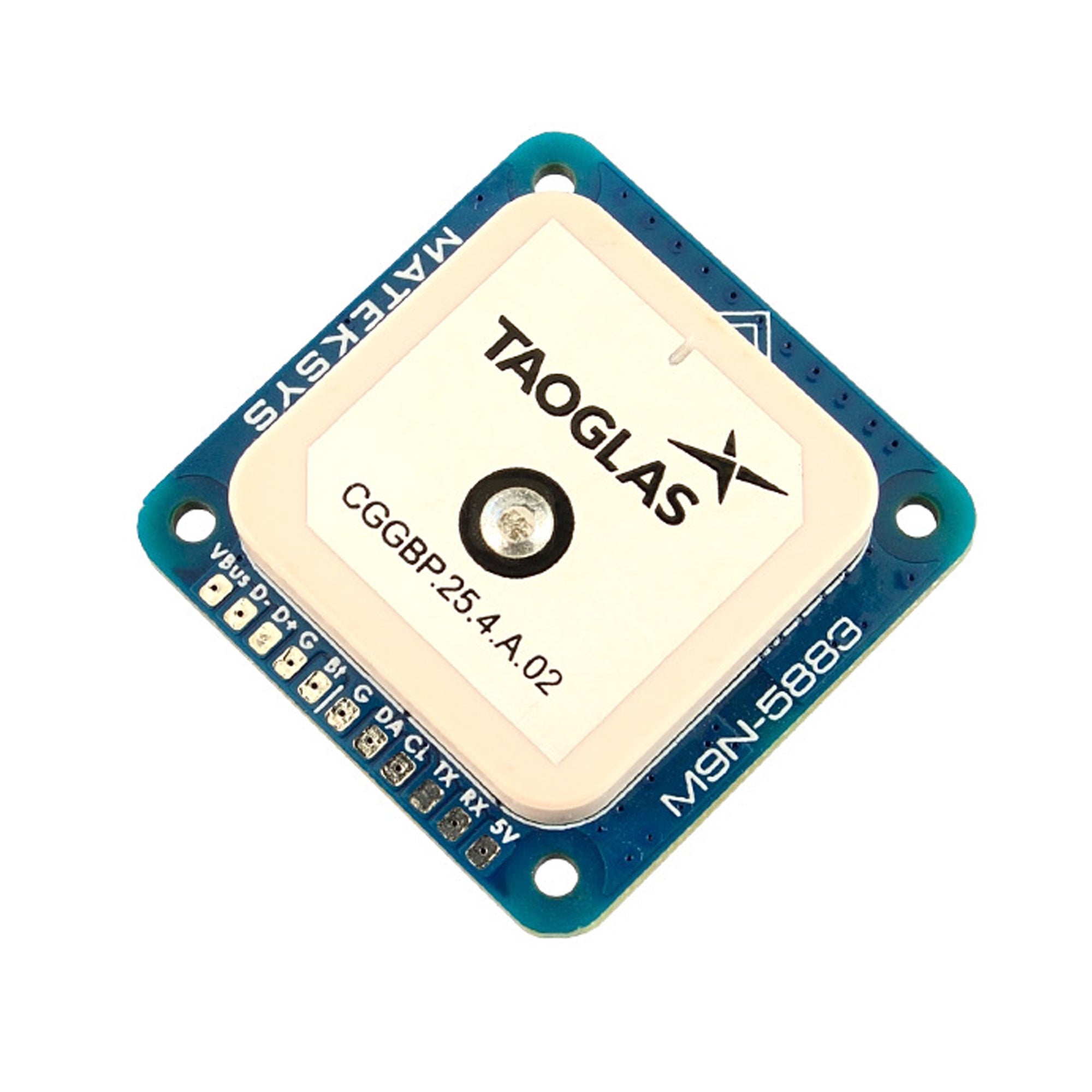

Matek GNSS & COMPASS M9N-5883

Are you looking to buy a Matek GNSS & COMPASS M9N-5883 in Australia?

M9N-5883 uses multi-constellation GNSS powered by u-blox NEO-M9N , NEO-M9N is a concurrent GNSS receiver which can receive and track multiple GNSS systems. Owing to the multi-band RF front-end architecture all four major GNSS constellations, GPS,Galileo, GLONASS and BeiDou can be received concurrently.

Specifications

• GNSS u-blox NEO-M9N (GPS, GLONASS, Galileo and BeiDou)
• Magnetic Compass QMC5883L
• Patch antenna 25*25*4mm
• Input voltage range: 4~5.5V (5V pad/pin)
• Power consumption: 50mA
• UART baudrate: 38400 default
• Operating Temperatures: -20~80 °C
• UART(TX, RX) interface for GNSS NEO-M9N
• I2C(DA, CL) interface for Compass QMC5883L
• JST-GH-6P connector
• 3.3V Power LED, Red
• GNSS PPS LED, Green,  blinking(1Hz) when GNSS has 3D fixed
• 32mm*32mm*10mm
• 14.5g

Includes

• 1x M9N-5883
• 1x JST-GH-6P to JST-GH-6P 20cm silicon wire
