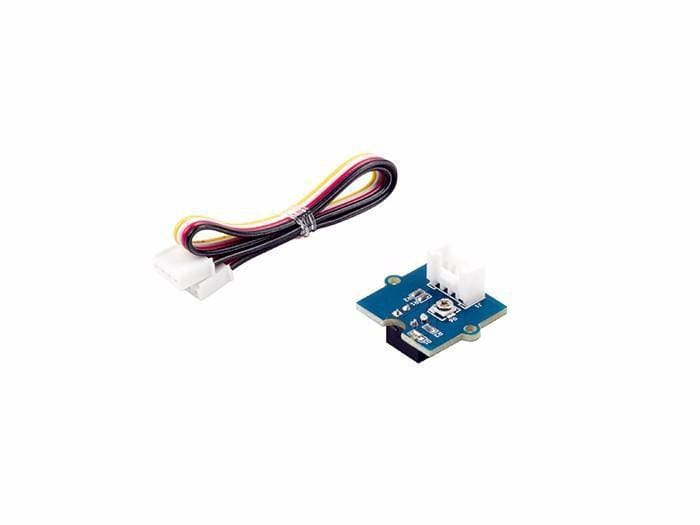

Grove – Line Finder v1.1

DESCRIPTION

Most automated robotic projects start with a line-following robot, the Grove – Line finder v1.1 is designed to help you achieve this task quickly and easily.

The eye-like sensors on the board are actually IR emitting LEDs and sensitive phototransistors. When the phototransistor detects the reflected infrared light from the IR emitting LED, it will output a digital signal, which changes from HIGH to LOW.

FEATURES

• Dimensions: 24.2mm x 20mm x 10.8mm
• Power supply: 5V DC
• Comparator: LMV358
• Photo reflective diode: RS-06WD
• Digital output mode: TTL (High when black is detected, Low when white is detected)
• Easy to use
• Integrated indicator LED
• Digital output
• Adjustable detecting range.
