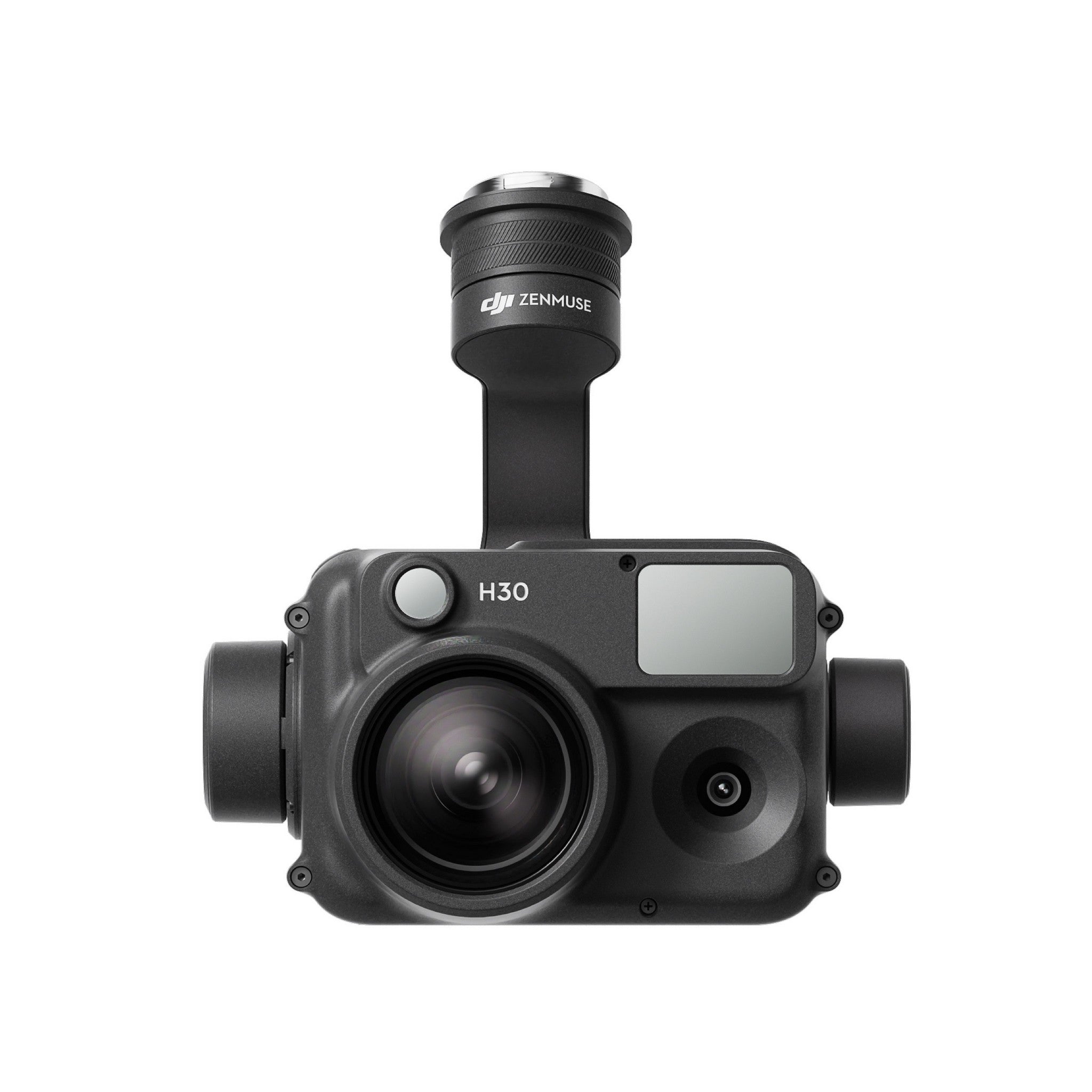

DJI Zenmuse H30 SP Camera Combo

The DJI Zenmuse H30 SP Camera Combo is a powerful all-weather, multi-sensor camera designed for professional applications in public safety, energy inspection, water conservation, forestry, and more. It integrates five high-performance modules
a high-resolution zoom camera, a wide-angle camera, an infrared thermal camera, a laser range finder, and an NIR auxiliary light.

The high-resolution zoom camera boasts a 40MP sensor, 34x optical zoom, and 400x digital zoom, capturing incredible detail even at long distances. DJI’s latest image stabilization ensures sharp, clear footage for effective inspections. The wide-angle camera provides a broader view of surroundings for situational awareness.

The Zenmuse H30 SP Camera Combo excels in low-light conditions. Both visible light and thermal cameras offer exceptional night vision capabilities. Night Scene mode enhances live view and recording quality, while IR illumination and NIR support allow for clear vision in complete darkness.

The infrared thermal camera features a 1280×1024 resolution, delivering detailed thermal images. A 32x digital zoom and a High-Res mode for precise observation further enhance its capabilities, making it ideal for tasks such as security, emergency response, and search-and-rescue operations.

The Zenmuse H30 SP Camera Combo simplifies target identification with Link Zoom, which maintains the same field of view for both visible and thermal images. The laser range finder accurately measures distances of objects from 3 meters to 3 kilometers.

For effective firefighting and high-temperature operation, the camera extends the temperature measurement range to -20° to 1600° C (-4° to 2912° F). Smart Capture ensures stunning photos in all lighting conditions with intelligent image algorithms. Electronic Dehazing tackles hazy or humid environments, achieving clear visuals.

Built to endure harsh conditions, the Zenmuse H30 SP Camera Combo features an IP54 dust and water resistance rating and a -20° to 50° C (-4° to 122° F) operating temperature range. Pre-recording captures crucial moments by retaining footage from up to 30 seconds before recording begins.

Enhanced security protects your data with media and transmission encryption, one-click log clearance, and a secure microSD card slot. Cloud-based collaboration allows streaming live views to the DJI FlightHub 2 cloud platform for remote monitoring and coordinated air-ground operations. The DJI Zenmuse H30 SP Camera Combo offers unparalleled versatility and performance, making it a valuable tool for professional users who demand the best aerial imaging solutions.

Key Features

• Improved and Sharper Vision
• Enhanced Low-Light Vision
• Increased Infrared Capability
• Intelligent Multi-Purpose Functions
• Enhanced Data Synchronization and Storage
• Advanced Environmental Flexibility

Technical Specifications

Camera
Zoom Camera:
Zoom
Up to 34x optical zoom and 400x digital zoom
40MP 1/1.8-inch CMOS sensor
Max video resolution
3840 x 2160 at 30fps

Wide-Angle Camera
Equivalent focal length
24mm
Field of view (DFOV)
82.1°
48MP 1/1.3-inch CMOS sensor
Max video resolution
3840 x 2160 at 30fps

Laser Range Finder
Measurement range
3-3000 meters
Measurement accuracy
Up to 500 meters
±(0.2 m + measurement distance × 0.15%)
Over 500 meters
±1.0 meter

Lens
Focal length
24mm (equivalent focal length 52mm)
Aperture
f/0.95
Field of view (DFOV)
45.2°
Photo resolution
1280 x 1024
Uncooled VOx microbolometer

Other
NIR auxiliary light
wavelength 850 nm, field of view 4.6±0.6° (round)
Ingress protection rating
IP54
